條碼引擎
條碼引擎
神鐳光電的 Scan Engine（條碼引擎 / 模組）系列專為設備製造商設計，提供多種光學與效能組合，可精準對應從小型裝置到高速物流的多元讀碼需求。全系列採小型化高整合設計，能輕鬆嵌入工業用 PDA、平板電腦、資料收集器與醫療設備等。每款引擎皆具備獨特特性──廣角、近距離、高移動容差與 DPM 支援，協助 OEM／ODM 快速整合並取得一致可靠的讀碼效能。

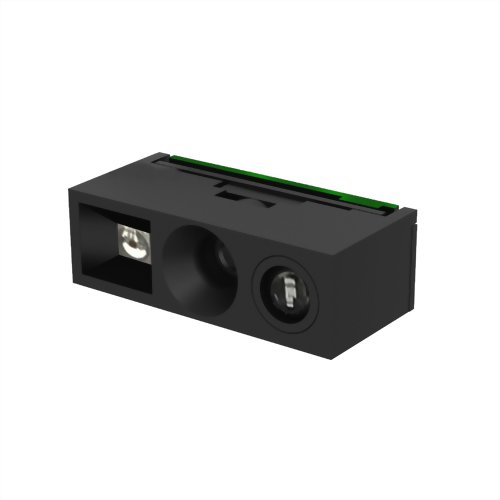

Scan Engine - 2D AI3255
● Compact size: (W x D x H) 21.8 x 11.2 x 7.1 mm
● Interface: USB HID, Virtual-COM , UART
● Interface: USB HID, Virtual-COM , UART
Scan Engine - 2D AI3310
● Compact size: (W x D x H) 32 x 13.5 x 14.1 mm
● With hardware decoder
● Interface: HID or UART or Virtual-Com
● Long reading distance & good at DPM reading
● Can support OCR-A & OCR-B reading
● Applied in barcode scanner, industrial
PDA / Tablet, data collector
● With hardware decoder
● Interface: HID or UART or Virtual-Com
● Long reading distance & good at DPM reading
● Can support OCR-A & OCR-B reading
● Applied in barcode scanner, industrial
PDA / Tablet, data collector
Barcode Scan Module - 2D SME560M
SME560M- Fixed-mount 2D barcode scanner for production line or conveyor system
* Easy installation
* Sensor (1280 x 1024 pixels) can read Code-39 3mil
* Motion tolerance 3.0 m/sec
* Read 1D/2D barcodes on paper or on the screen quickly
* Interface: Micro USB, 1.25mm wafer 5pin, FPC 12pin
* Easy installation
* Sensor (1280 x 1024 pixels) can read Code-39 3mil
* Motion tolerance 3.0 m/sec
* Read 1D/2D barcodes on paper or on the screen quickly
* Interface: Micro USB, 1.25mm wafer 5pin, FPC 12pin
Barcode Scan Module - 2D SME560J
SME560J Stationary 2D scan module is designed for KIOSK/ Self-service machine.
* excellent scanning performance
* presentation mode
* multi connections: USB / TYPE C / micro USB / 1.25mm Wafer 5pin
* excellent scanning performance
* presentation mode
* multi connections: USB / TYPE C / micro USB / 1.25mm Wafer 5pin
條碼掃描模組
Size(WxDxH): 115 x 95 x 50 mm
Barcode Engine - 2D AI3220
AI3220 advantages:
* Compact size: (W x D x H) 22.2 × 14.6 × 9.2 mm
* With hardware decoder
* Interface: HID or UART
* Applied in barcode scanner, industrial PDA/Tablet, data collector
* Compact size: (W x D x H) 22.2 × 14.6 × 9.2 mm
* With hardware decoder
* Interface: HID or UART
* Applied in barcode scanner, industrial PDA/Tablet, data collector
Barcode scan engine - 2D AI3230
2D Barcode Scan Engine AI3230
Special design for the near-field reading application
Scan Engine with 640*480 COMS.
2D Barcode Scan Engine AI3230 with an advanced 2D imaging technology.
Precise decode 1D & 2D bar codes on labels, paper, and mobile phone or computer displays, instantly and accurately.
Various interfaces, easy for integrating into any application which requests 2D Barcode Scan Engine AI3230
Capable to read various size barcodes.
Compatible with Linux, Android, Windows, MAC OS systems,
2D Barcode Scan Engine AI3230
Capable of industrial PDA/Tablet, data collector, blood glucose meter...etc.
Special design for the near-field reading application
Scan Engine with 640*480 COMS.
2D Barcode Scan Engine AI3230 with an advanced 2D imaging technology.
Precise decode 1D & 2D bar codes on labels, paper, and mobile phone or computer displays, instantly and accurately.
Various interfaces, easy for integrating into any application which requests 2D Barcode Scan Engine AI3230
Capable to read various size barcodes.
Compatible with Linux, Android, Windows, MAC OS systems,
2D Barcode Scan Engine AI3230
Capable of industrial PDA/Tablet, data collector, blood glucose meter...etc.
條碼掃描引擎 - 2D AI3200+/ AI3200 V3
* 小巧尺寸 (W x D x H) : 21.2 x 14.6 x 11.3 mm
* 內建硬體解碼器
* 介面： HID or UART
* 兩種不同解析度：
AI3200+ SR: Code 39, 4 mil
AI3200+ SHD: Code 39, 3 mil
* 應用於條碼掃描器、工業PDA/平板電腦﹑數據採集器
* 內建硬體解碼器
* 介面： HID or UART
* 兩種不同解析度：
AI3200+ SR: Code 39, 4 mil
AI3200+ SHD: Code 39, 3 mil
* 應用於條碼掃描器、工業PDA/平板電腦﹑數據採集器
條碼掃描引擎 - 1D LR2500
LR2500 是第一個鐳射條碼引擎採用"沒有移動部件內部技術"，完全避開 Zebra (舊稱 Motorola) & 其他品牌的鐳射引擎供應商的專利. 用 LR2500 鐳射條碼引擎的掃描器可以出售全球各地，而不用支付給Zebra (舊稱 Motorola 任何的專利費用。
* 新代超小鐳射引擎。
* 沒有移動部件內部技術。
* 快速解碼率。
* 屬於 Class 1 類 安全鐳射。
* 申請專利國家: 美國、 德國、 日本、 臺灣、中國
* 適合行動裝置。掌上型電腦。資料收集器。平板電腦。
* 新代超小鐳射引擎。
* 沒有移動部件內部技術。
* 快速解碼率。
* 屬於 Class 1 類 安全鐳射。
* 申請專利國家: 美國、 德國、 日本、 臺灣、中國
* 適合行動裝置。掌上型電腦。資料收集器。平板電腦。
神鐳光電──領先的條碼掃描器製造商與掃描引擎解決方案提供商
我們專門製造品質精良的 1D/2D 條碼掃描器，廣泛應用於各行各業。我們的條碼掃描器、掃描引擎及掃描模組因其穩定性和卓越性能而備受肯定。我們擅長各類條碼掃描的 ODM 專案，並提供 OEM 服務，為您的業務量身打造最適合的客製化掃描解決方案。
