條碼掃描引擎 - 2D AI3200+/ AI3200 V3
* 內建硬體解碼器
* 介面： HID or UART
* 兩種不同解析度：
AI3200+ SR: Code 39, 4 mil
AI3200+ SHD: Code 39, 3 mil
* 應用於條碼掃描器、工業PDA/平板電腦﹑數據採集器
RIOTEC 神鐳光電的 2D 掃描引擎是一款高性能解決方案，專為快速、準確的條碼解碼而設計。採用先進的影像擷取與解碼技術，能輕鬆讀取紙質標籤與智慧型手機螢幕上的 1D 與 2D 條碼，非常適用於零售業、工業自動化、醫療保健等多種應用場景。

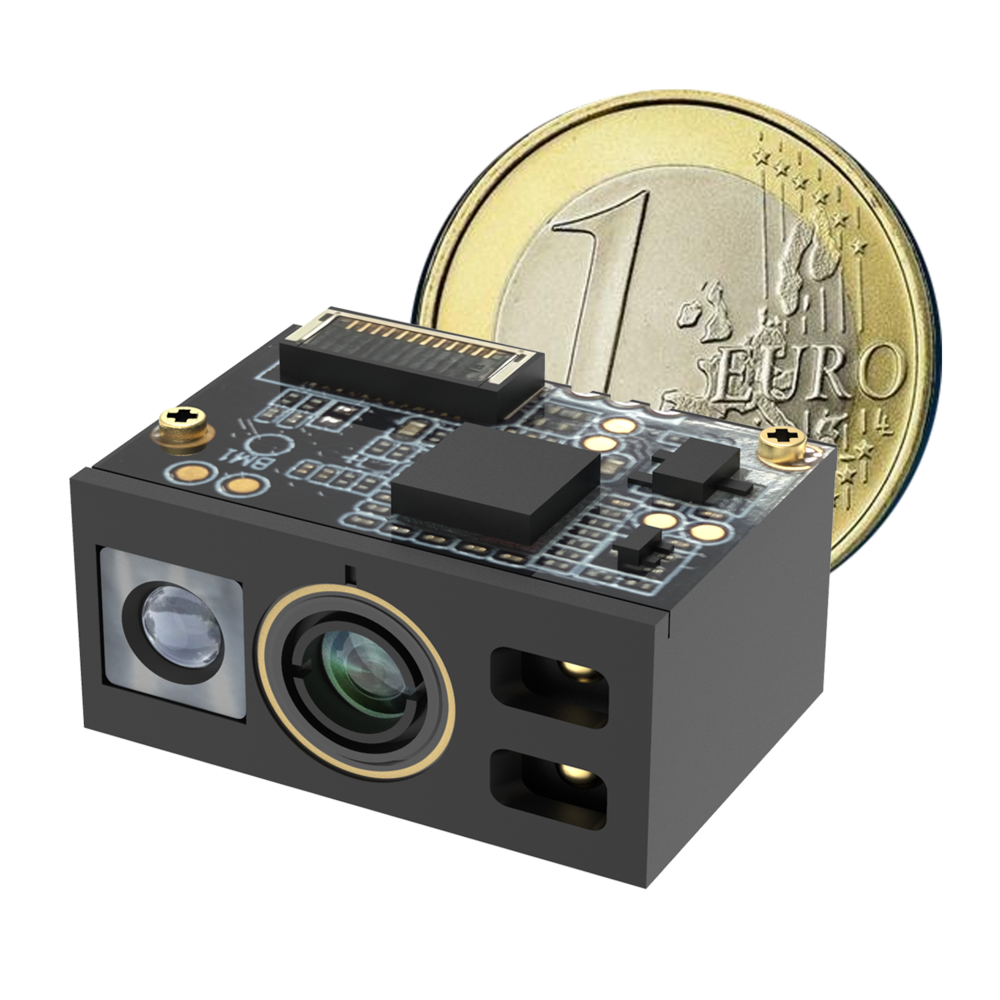

（點擊上圖可看360度產品圖）

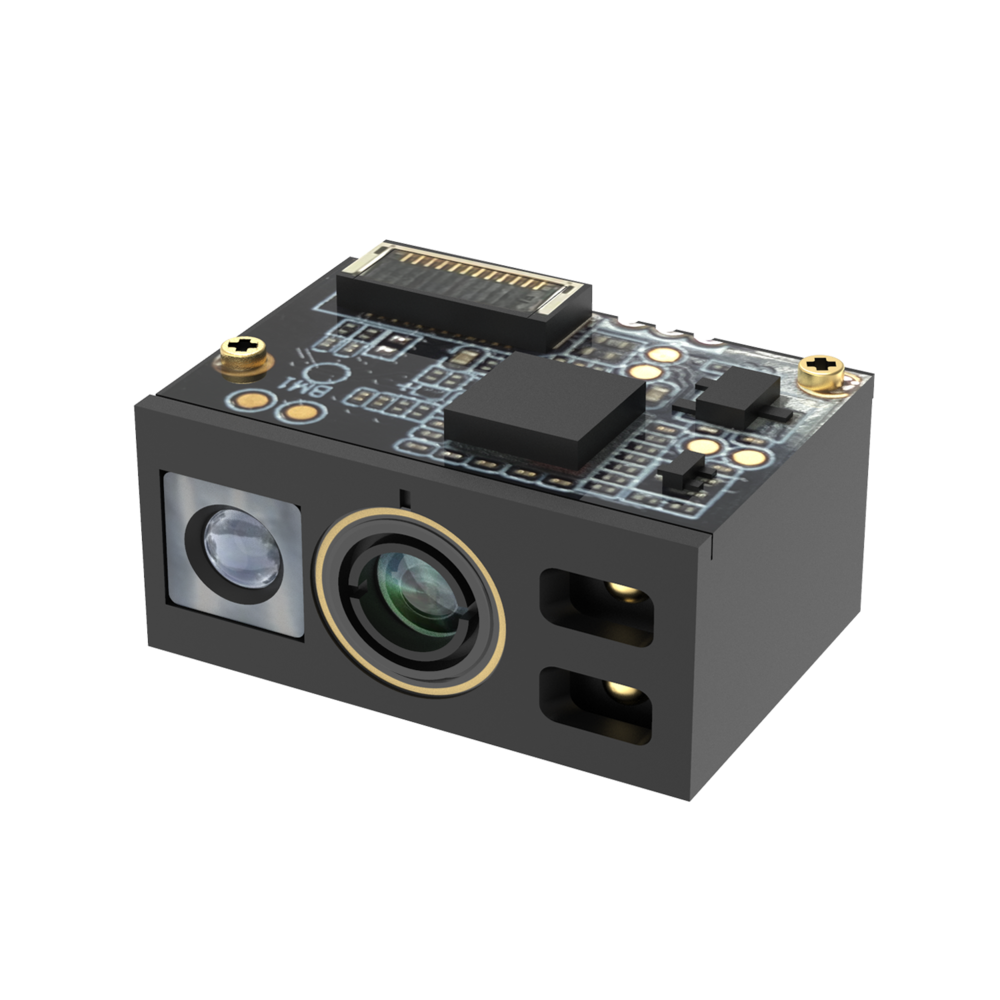

內建硬體解碼器，確保在多樣環境中皆有優異解碼表現。體積小（ 14.6 x 21.2 x 11.3 mm）便於整合至條碼掃描器、工業用 PDA、平板電腦及數據採集器中。
適用於各種產業
零售業：加速 POS 系統結帳流程，提升顧客滿意度。工業自動化：優化生產線數據採集，確保流程順暢無誤。
醫療保健：精確掃描藥品、病患資訊，提升醫療作業安全性與效率。
物流倉儲：快速準確地追蹤貨物，簡化倉儲管理流程，降低營運成本。
票務系統：提供快速可靠的電子票券掃描方案，提升驗票效率與使用者體驗。
行動支付：快速識別行動支付條碼。
|
Description |
2D Barcode
Scan Engine |
2D Barcode
Scan Engine |
||
|
Performance Characteristics |
||||
|
˙ |
Light source |
625±10 nm LED |
||
|
˙ |
Image Sensor |
CMOS |
||
|
˙ |
Resolution |
752*480 |
||
|
˙ |
Depth of field |
1D (20 mil Code 39)：500 mm |
1D (20 mil Code 39)：600 mm |
|
|
˙ |
Best resolution |
1D (CODE39) ≥ 3mil |
1D (CODE39) ≥ 4mil |
|
|
˙ |
Interface |
RS232 TTL, USB (HID) |
||
|
˙ |
Print contrast |
≥ 30% |
||
|
˙ |
Roll |
360° |
||
|
˙ |
Pitch |
±50° |
||
|
˙ |
Yaw |
±50° |
||
|
˙ |
Field of View |
Horizontal 36°; Vertical 23° |
||
|
˙ |
Symbologies |
Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E,
GS1 Databar, Codabar |
||
|
Electrical Characteristics |
||||
|
˙ |
Operational Input Voltage |
|
3.3 V/DC ±5% |
|
|
˙ |
Current - operating |
|
220 mA |
|
|
˙ |
Current - Idle |
|
8.7 mA |
|
|
Physical Characteristics |
||||
|
˙ |
Dimension (L x W x H) |
|
14.6 × 21.2 × 11.3 mm |
|
|
˙ |
Weight |
|
4.4 g |
|
|
Environment |
||||
|
˙ |
Temperature-operation |
|
0°C to 50°C |
|
|
˙ |
Temperature-storage |
|
-10°C to 60°C |
|
|
˙ |
Humidity-operation |
|
5% to 95% ( non-condensing) |
|
|
˙ |
Light level |
0 ~ 100000 lux (natural light) |
||
|
Decode Distances (DOF is measured at the office under 600 lux and by Standard barcode. There are +/- 10 mm Torrence. DOF may be also impacted by barcode quality and environmental conditions. ) |
||||
|
˙ |
Code39 (3mil) |
|
60mm - 130mm |
- |
|
˙ |
Code39 (4mil) |
|
55mm - 160mm |
50mm - 140mm |
|
˙ |
Code39 (5mil) |
|
55mm - 180mm |
50mm - 160mm |
|
˙ |
UPC-A (13mil) |
|
60mm - 300mm |
60mm - 360mm |
|
˙ |
Code39 (20mil) |
|
100mm - 500mm |
100mm - 600mm |
|
˙ |
PDF417 (4mil) |
|
70mm - 110mm |
- |
|
˙ |
PDF417 (6.67mil) |
|
50mm - 160mm |
60mm - 160mm |
|
˙ |
Data Matrix (10mil) |
|
40mm - 110mm |
50mm - 120mm |
|
˙ |
QR Code (20mil) |
30mm - 250mm |
30mm - 280mm |
|
