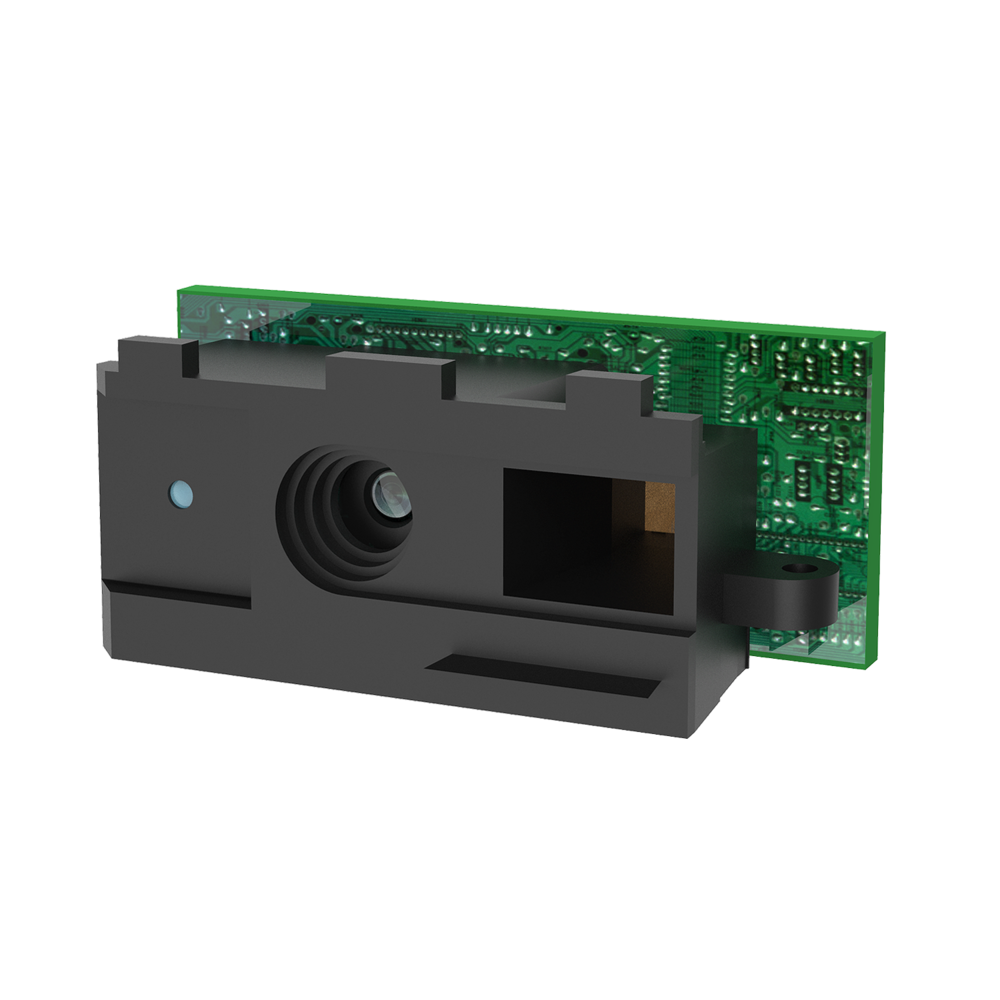

Scan Engine - 2D AI3310
● With hardware decoder
● Interface: HID or UART or Virtual-Com
● Long reading distance & good at DPM reading
● Can support OCR-A & OCR-B reading
● Applied in barcode scanner, industrial
PDA / Tablet, data collector

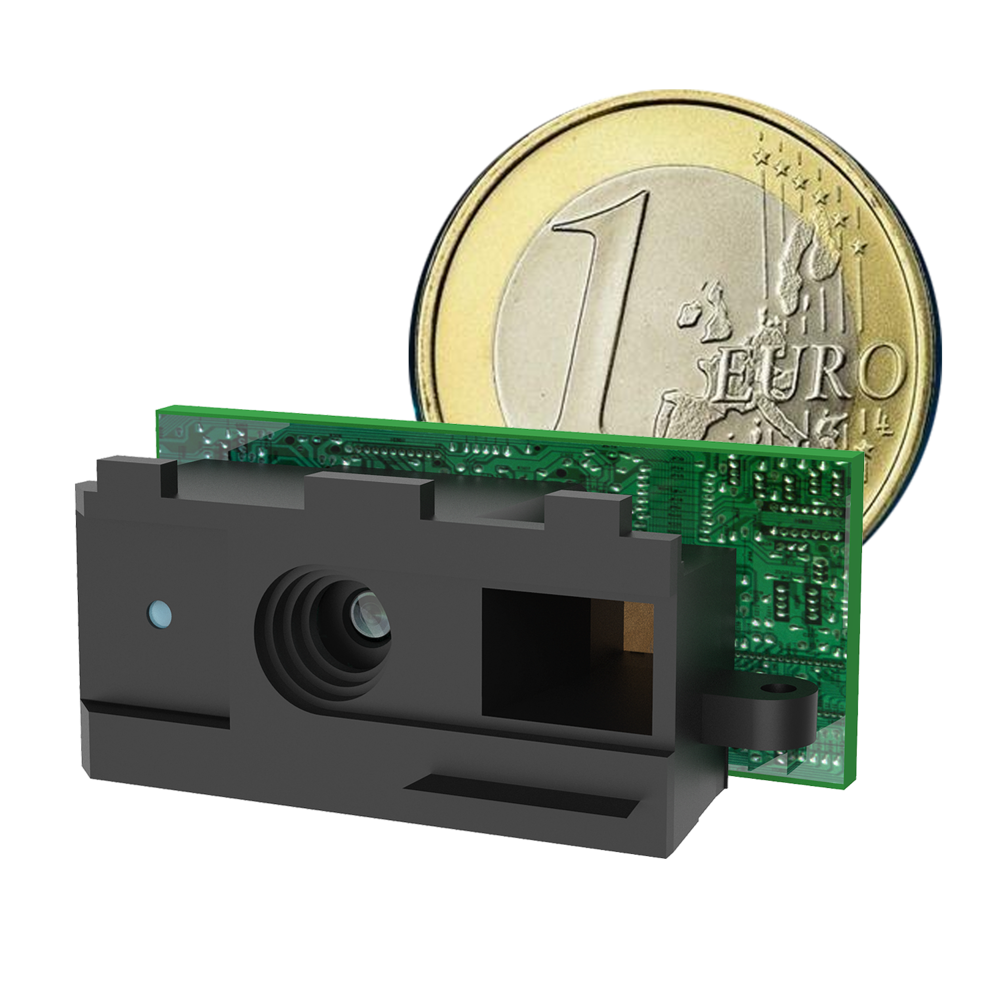

The AI3310 2D scan engine is crafted to meet the demands of high-speed, precise barcode scanning in a compact form. Measuring only 32 x13.5 x14.1 mm, this versatile module integrates easily into OEM products like barcode scanners, data collectors, and industrial tablets. Equipped with advanced 2D imaging and a hardware decoder, the AI3310 offers a long reading distance and excels at DPM (Direct Part Mark) scanning, ensuring reliable performance on challenging surfaces. Supporting interfaces such as HID and UART, it seamlessly adapts to various industrial devices.
As a trusted barcode engine manufacturer in Taiwan, we understand that high-performance and reliability are essential in industrial applications. The AI3310 is engineered with cutting-edge 2D imaging technology, optimizing scan accuracy on both printed and DPM surfaces, making it ideal for industries where precision is crucial. Our scan engines are designed to meet the stringent needs of OEMs across healthcare, logistics, and manufacturing. With a rugged build and low power consumption, the AI3310 ensures long-lasting functionality in demanding environments. We’re committed to delivering innovative, reliable 2D barcode scan modules that exceed industry standards.
Ready to integrate the AI3310 into your products? Contact us today and discover how our advanced 2D barcode scan modules can elevate your operations!
Features
- Compact design: 32 x 13.5 x 14.1 mm
- With hardware decoder
- Interface: HID or UART or Virtual-Com
- Long Reading Distance
- Support DPM reading
-
Can support OCR-A & OCR-B reading
- Applications: Barcode scanners, industrial PDAs/tablets, data collectors
|
Performance Characteristics |
|||||||
|
˙ |
Illumination Element |
White LED |
|||||
|
˙ |
Aiming LED |
Red Light |
|||||
|
˙ |
Image Sensor |
|
CMOS (1280* 800 pixels) |
||||
|
˙ |
Depth of Field |
13 mil EAN 13 : |
440 |
mm |
|||
|
˙ |
Best Resolution |
|
1D (4mil)：Code 39 |
||||
|
˙ |
Print Contrast |
|
≧ |
20 |
% |
||
|
˙ |
Scan Angle |
|
Tilt: 360° / Pitch ±60° / Skew ±60° |
||||
|
˙ |
Indicators |
|
LED & beeper |
||||
|
˙ |
Interface |
|
USB HID,USB Serial (by request) , RS232(by request) |
||||
|
˙ |
Symbologies |
|
1D: Code 128, EAN-13, EAN-8, Code 39, Trioptic
Code 39, Full ASCII Code39, UPC-A, UPC-E, ISBN, ISNN , |
||||
|
Electrical Characteristics |
|||||||
|
˙ |
Input voltage |
5 VDC ± 5% |
|||||
|
˙ |
Current - operating |
|
|
< |
300 |
mA |
|
|
Physical Characteristics |
|||||||
|
˙ |
Dimension (L x W x H) |
32 x 13.5 x 14.1 mm |
|||||
|
˙ |
Weight |
3g |
|||||
|
User Environment |
|||||||
|
˙ |
Temperature-operation |
-10°C to 50°C |
|||||
|
˙ |
Temperature-storage |
-20°C to 60°C |
|||||
|
˙ |
Humidity |
5% to 95% relative humidity, non-condensing |
|||||
|
˙ |
Ambient Light |
0-100,000 lux (total darkness-bright sunlight) |
|||||
|
Decode Zone (DOF is measured at the office under 600 lux and by Standard barcode. There are +/- 10 mm Torrence. DOF may be also impacted by barcode quality and environmental conditions. ) |
|||||||
|
˙ |
4mil Code39 |
|
|
95 |
~ |
170 |
mm |
|
˙ |
5mil Code39 |
|
|
95 |
~ |
250 |
mm |
|
˙ |
13mil EAN13 |
|
|
70 |
~ |
440 |
mm |
|
˙ |
6.67 mil PDF417 |
|
|
75 |
~ |
280 |
mm |
|
˙ |
10 mil DataMatrix |
60 |
~ |
270 |
mm |
||
|
˙ |
20 mil QR Code |
|
|
40 |
~ |
480 |
mm |
