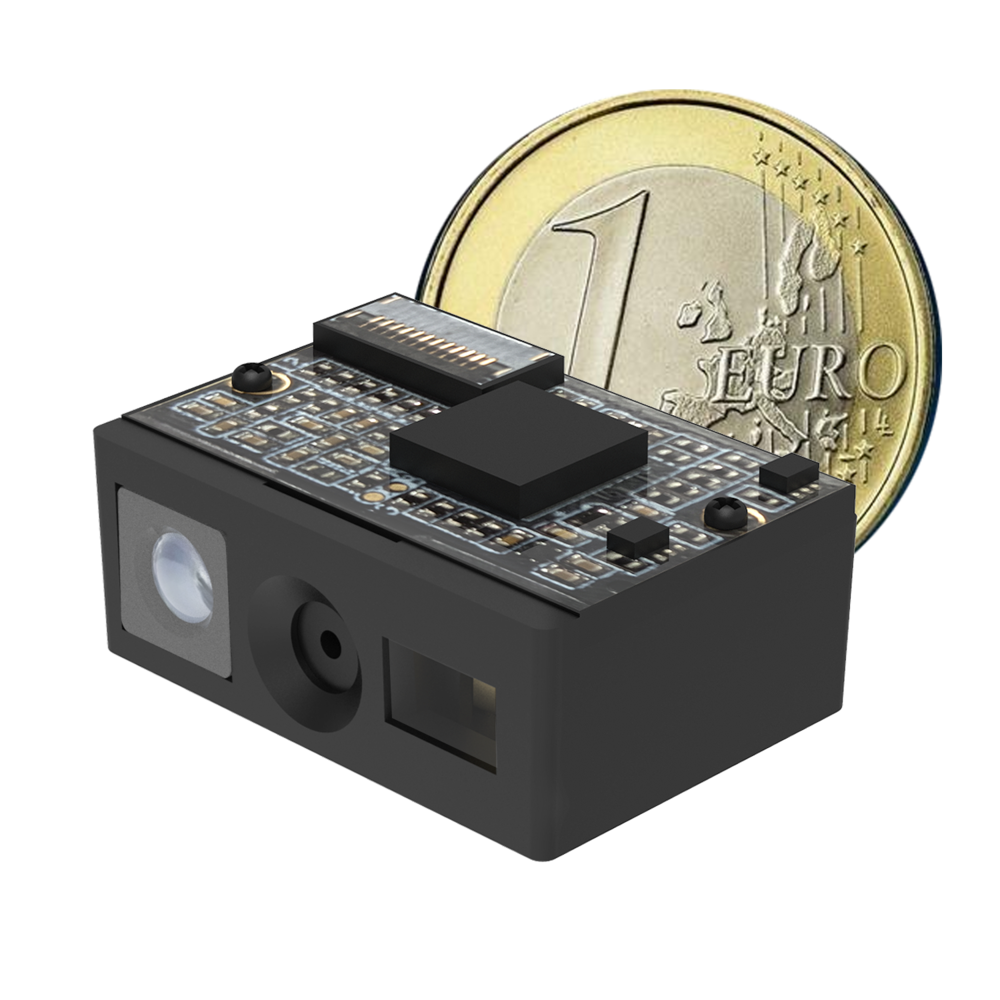

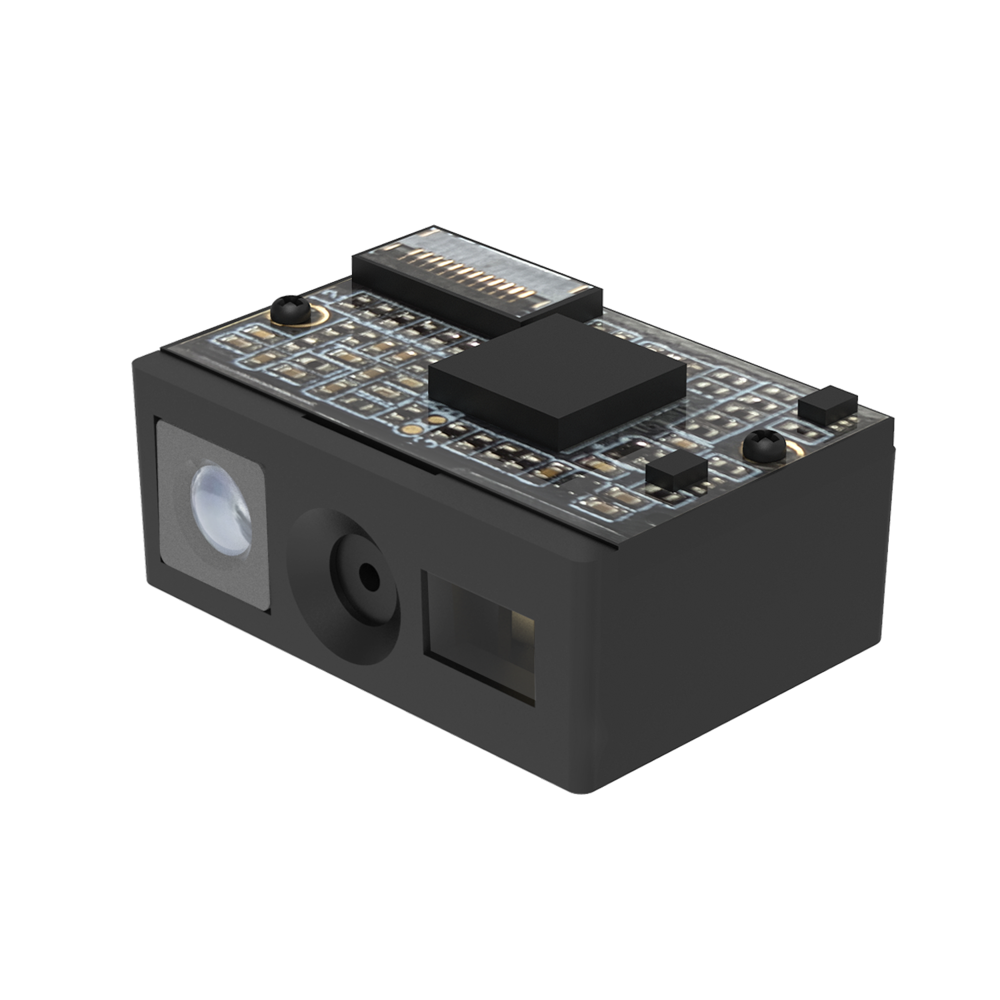

Barcode Engine - 2D AI3220
* Compact size: (L x W x H) 22.2 × 14.6 × 9.2 mm
* With hardware decoder
* Interface: HID or UART
* Applied in barcode scanner, industrial PDA/Tablet, data collector
AI3220 excels reading screen barcodes. Low power consumption, supports USB / TTL-232 interfaces
AI3220 (with hardware decoder) can read 1D / 2D codes quickly on paper label as well as smartphone.
Its compact size (22.2 x 14.6 x 9.2 mm) make it easy to be installed into different devices.
AI3220 advantages:
* Compact size: (L x W x H) 22.2 × 14.6 × 9.2 mm
* With hardware decoder
* Interface: HID or TTL-232 (UART)
|
Performance Characteristics |
|||
|
˙ |
Illumination Element |
White LED |
|
|
˙ |
Aiming LED |
Red Light : 625nm ± 3nm |
|
|
˙ |
Image Sensor |
|
CMOS (640×480 pixels) |
|
˙ |
Depth of field |
|
13mil EAN13: 210mm |
|
˙ |
Best resolution |
|
4mil Code39 |
|
˙ |
Interface |
|
USB & UART |
|
˙ |
Print contrast |
|
≧30% |
|
˙ |
Roll |
|
Roll: 360 ° |
|
˙ |
Pitch |
|
Pitch: 50 ° |
|
˙ |
Yaw |
|
Skew : 50° |
|
˙ |
Field of View |
|
Horizontal ：42° Vertical：38° |
|
˙ |
Symbologies |
|
EAN-8，EAN-13，UPC-A，UPC-E，Code 39，Code 93，Code 128，Codabar，Interleave 2 of 5，ISBN，MSI，GS1 Databar，GS1-128，PDF417，QR Code，DataMatrix，Aztec |
|
Electrical Characteristics |
|||
|
˙ |
Operational Input Voltage |
|
3.3±5% VDC |
|
˙ |
Current - operating |
|
≦230MA |
|
Physical Characteristics |
|||
|
˙ |
Dimension (L x W x H) |
|
22.2 x 14.6x 9.2 mm |
|
˙ |
Weight |
|
3g |
|
Environment |
|||
|
˙ |
Temperature-operation |
|
0°C to 50°C |
|
˙ |
Temperature-storage |
|
-10°C to 60°C |
|
˙ |
Humidity-operation |
|
5% to 95% ( non-condensing) |
|
˙ |
Light level |
|
0 ~ 100000 lux (natural light) |
|
Decode Distances (DOF is measured at the office under 600 lux and by Standard barcode. There are +/- 10 mm Torrence. DOF may be also impacted by barcode quality and environmental conditions. ) |
|||
|
˙ |
4 mil Code39 |
|
50mm ~ 115mm |
|
˙ |
5 mil Code39 |
|
50mm ~ 145mm |
|
˙ |
13 mil EAN 13 |
|
60mm ~ 210mm |
