Mobile Barcode Scanner - 2D GodaScan iDC9277LH/DC9277LH
** DC9277LH: Wired OTG for Android
iDC9277LH: Bluetooth comm.(HID profile for iOS & Android)
(SPP profile for Androidonly)
** With APP, the Smartphone becomes data collector easily.
** With touch trigger, the operation is easy.

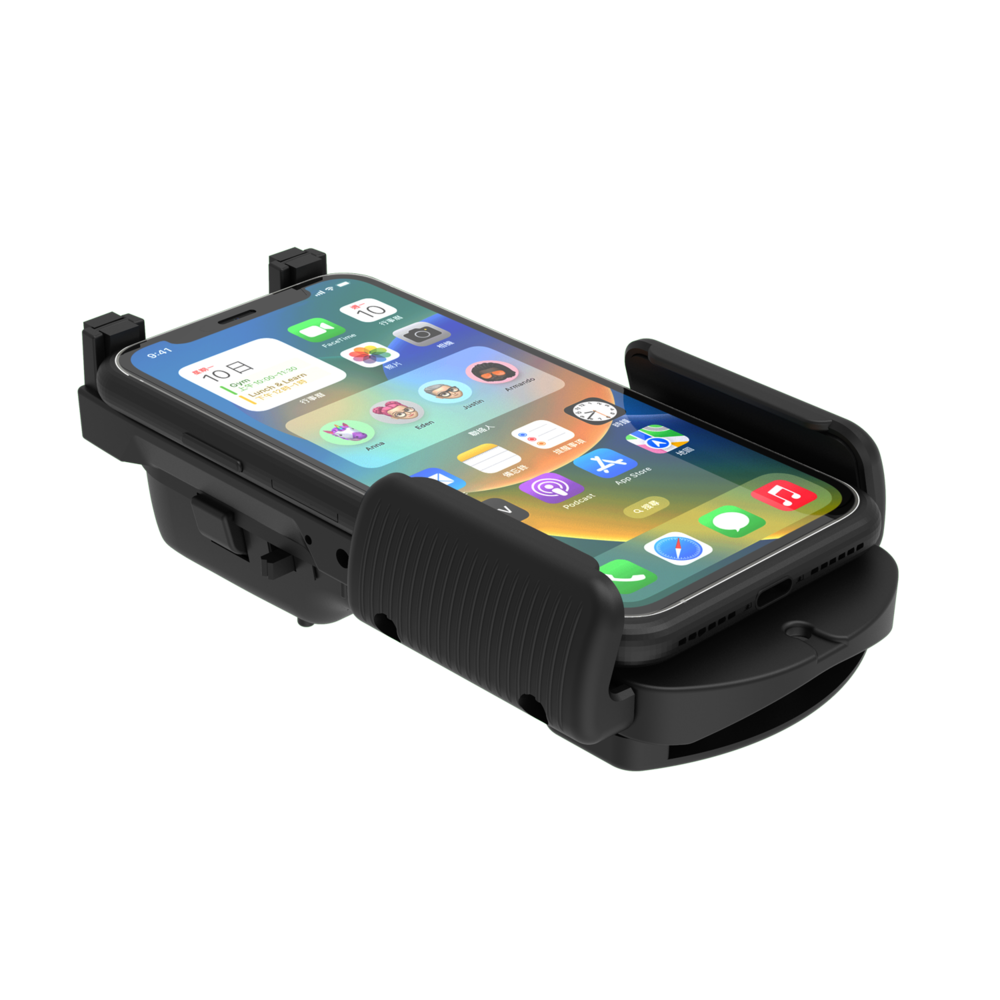

** The new clip-type holder can hold smartphone tightly.
What barcode scanner can work with smartphone as one unit and upgrade smartphone to simple data collector? RIOTEC's GodaScan will do.
A Brilliant Combination Design: RIOTEC Enriches Your Mobile Device Become a Simple Data Collector. RIOTEC creates a New option Mobile barcode scanner ~ GodaScan for iOS / Android device use. GodaScan can attach to the smartphone tightly and easy to upgrade it to become a simple Data collector.
With various APP & GodaScan, your Android phone can be used in different applications, including warehouse management, inventory management, logistics, document management, and many other applications.
GodaScan equipped with 3.7 V, 900 mAh Li-Ion battery, the battery can meet the power needs of the scanner while operating. The scanner will not consume the power of a mobile device. Thus, will extend the working time.
Without removing GodaScan, you can charge internal battery & smartphone at the same time
GodaScan mobile barcode scanner not only saves the investment, but also increases the working efficiency.
GodaScan feature:
* GodaScan has two type: Bluetooth & OTG communications
** iDC9277LH: Bluetooth GodaScan for iOS / Android smartphones
** DC9277LH: OTG GodaScan for Android OTG smartphone only
* iDC9277LH & DC9277LH adopts RIOTEC AI3200+ 2D engine
* This solution can be applied in Warehouse, Logistic, Retail fields.
* Easy operation by touch trigger
* GodaScan has new clip-type holder which can hold smartphone tightly.
* Long working time: more than 10K scans/ per fully charged.
* Can charge smartphone & GodaScan at the same time
Option:
1. Interface: USB HID or USB-Serial
2. Connection cable: micro USB cable or type-C cable
|
Scanner Specifications： |
||||
|
Model Name |
iDC9277LH |
DC9277LH |
||
|
Description |
BT GODASCAN 2D Barcode scanner |
Wired GODASCAN 2D Barcode scanner |
||
|
Engine |
AI3200+ RIOTEC 2D engine |
|||
|
Performance Characteristics |
||||
|
˙ |
Light source |
625±10 nm LED |
||
|
˙ |
Depth of field |
(20 mil Code 39)：600 mm |
||
|
˙ |
Sensor |
|
CMOS (752×480 pixels) |
|
|
˙ |
Best resolution |
|
1D
(CODE39) ≥ 4mil |
|
|
˙ |
Reading angle |
|
Tilt: 360° / Pitch ±50° / Skew ±50° |
|
|
˙ |
Print contrast |
|
≥ 30% |
|
|
˙ |
Indicators |
|
Beeper |
|
|
˙ |
charge port |
|
Micro USB port |
|
|
˙ |
Symbologies |
|
1D: Code 128, EAN-13, EAN-8, Code 39,
UPC-A, UPC-E, GS1 Databar, |
|
|
˙ |
Interface |
|
through Bluetooth |
USB Type-C or Micro USB |
|
˙ |
Memory capacity |
1 MB |
- |
|
|
Electrical Characteristics |
||||
|
˙ |
Input voltage |
5 V / DC ± 5% |
||
|
˙ |
Current - operating |
340 mA |
330 mA |
|
|
˙ |
Radio Range |
|
BT Class 1 (70~100m in open area, based on real operation environment) |
- |
|
˙ |
RF Frequency |
|
2.4GHz |
- |
|
˙ |
Communication |
|
HID profile, SPP profile |
- |
|
˙ |
Battery Type |
|
3.7V, 900mAh Li-Ion battery |
|
|
˙ |
Scans per charge |
|
more than 10,000 scans when fully charged |
|
|
˙ |
Charge Time |
|
4 ~ 5 hours |
|
|
˙ |
Power cable |
|
Micro USB cable |
|
|
Physical Characteristics |
||||
|
˙ |
Dimension |
142 x 75.2 x 52 mm (LxWxH) |
||
|
˙ |
Weight |
138 g ± 5 g |
||
|
User Environment |
||||
|
˙ |
Temperature-operation |
0°C to 50°C |
||
|
˙ |
Temperature-storage |
-10°C to 60°C |
||
|
˙ |
Humidity-operation |
5% to 95% relative humidity, non-condensing |
||
|
Decode Zone (DOF is measured at the office under 600 lux and by Standard barcode. There are +/- 10 mm Torrence. DOF may be also impacted by barcode quality and environmental conditions. ) |
||||
|
˙ |
4 mil Code 39 |
|
50 - 140 mm |
|
|
˙ |
5 mil Code 39 |
|
50 - 160 mm |
|
|
˙ |
13 mil UPC-A |
|
60 - 360 mm |
|
|
˙ |
20 mil Code 39 |
|
100 - 600 mm |
|
|
˙ |
6.67 mil PDF417 |
|
60 - 160 mm |
|
|
˙ |
10 mil DataMatrix |
50 -120 mm |
||
|
˙ |
20 mil QR Code |
30 - 280 mm |
||
