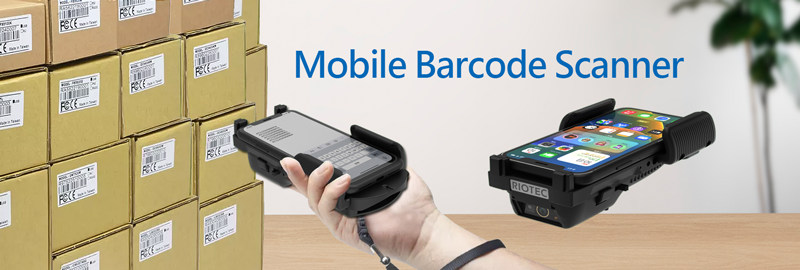

Mobile Barcode Scanner - 2D GodaScan iDC9270JH/DC9270JH
** DC9270JH: Wired OTG for Android phone
iDC9270JH: Bluetooth HID profile for iOS, Android devices; Bluetooth SPP profile for Android device)
** With touch trigger, the operation is easy.
** The new clip-type holder can hold smartphone tightly.
** With APP, this solution can be applied in Warehouse, Retail, Logistic
What barcode scanner can bring smartphone to data capture field? RIOTEC's GodaScan will do.
A Brilliant Combination Design: RIOTEC Enriches Your Mobile Device Become a Simple Data Collector.
RIOTEC creates an innovative Mobile barcode scanner ~ GodaScan for iOS / Android devices.
GodaScan scan can combine with smartphone phone tightly and easy to upgrade it to a simple Data collector.
With various APP & GodaScan, your Android phone can be used in different applications, including warehouse management, inventory management, logistics, document management, and many other applications.
GodaScan equipped with 3.7 V, 900 mAh Li-Ion battery, the battery can meet the power needs of the scanner while operating. The scanner will not consume the power of a mobile device. Thus, it will extend the working time.
Without removing GodaScan, you can charge internal battery & smartphone at the same time
GodaScan mobile barcode scanner not only saves the investment, but also increases the working efficiency.
GodaScan feature:
* GodaScan has two type: Bluetooth & OTG communications
** iDC9270JH: Bluetooth GodaScan for iOS / Android smartphones
** DC9270JH: OTG GodaScan for Android OTG smartphone only
* iDC9270JH & DC9270JH adopts RIOTEC 2D engine
* This solution can be applied in Warehouse, Logistic, Retail fields.
* Easy operation by touch trigger
* GodaScan has PU glue / suction cups which can be stuck on back of smartphone strongly.
* Long working time: more than 10K scans/ per fully charged.
* Can charge smartphone & GodaScan at the same time
Option:
1. Interface: USB HID or USB-Serial
2. Connection cable: micro USB cable or type-C cable
|
Scanner Specifications： |
||||
|
Model Name |
iDC9270JH |
DC9270JH |
||
|
Description |
Bluetooth GODASCAN 2D Barcode scanner |
Wired, GODASCAN 2D Barcode scanner |
||
|
Engine |
RIOTEC 2D engine |
|||
|
Performance Characteristics |
||||
|
˙ |
Illumination Element |
|
White LED |
|
|
Aiming LED |
|
625 nm |
||
|
˙ |
Depth of field |
|
13 mil UPCA: 340 mm |
|
|
˙ |
Sensor |
|
CMOS (640×480 pixels) |
|
|
˙ |
Best resolution |
|
1D (4 mil): Code 39 |
|
|
˙ |
Print contrast |
|
≥ 30% |
|
|
˙ |
Indicators |
|
LED & beeper |
|
|
˙ |
charge port |
|
Micro USB port on |
|
|
˙ |
Symbologies |
|
1D: Code 128, EAN-13, EAN-8, Code 39, Code 32,
UPC-A, UPC-E, |
|
|
˙ |
Interface |
|
Bluetooth |
USB HID or USB Serial |
|
˙ |
Cable supported |
|
Micro USB cable or Type-C cable |
|
|
˙ |
Memory capacity |
|
1MB (can save more than 65,000 EAN-13 codes) |
- |
|
Electrical Characteristics |
||||
|
˙ |
Input voltage |
|
5 V/DC ± 5% |
|
|
˙ |
Current - operating |
< 500 mA |
||
|
˙ |
Radio Range |
|
Bluetooth Class 1 (70~100m in open area, |
- |
|
˙ |
RF Frequency |
|
2.4GHz |
- |
|
˙ |
Communication |
|
HID profile, SPP profile |
- |
|
˙ |
Battery Type |
|
3.7V 900mAh Li-Ion battery |
|
|
˙ |
Scans per charge |
|
more than 10,000 scans when fully charged |
|
|
˙ |
Charge Time |
|
4 ~ 5 hours |
|
|
Physical Characteristics |
||||
|
˙ |
Dimension |
|
142 x 75.2 x 52 mm (L x W x H) |
|
|
˙ |
Weight |
138 g ± 5 g |
||
|
User Environment |
||||
|
˙ |
Temperature-operation |
|
'0°C to 50°C |
|
|
˙ |
Temperature-storage |
|
-10°C to 60°C |
|
|
˙ |
Humidity-operation |
|
5% to 95% relative humidity, non-condensing |
|
|
˙ |
Ambient Light |
|
0-100,000 lux (total darkness-bright sunlight) |
|
|
Decode Zone (DOF is measured at the office under 600 lux and by Standard barcode. There are +/- 10 mm Torrence. DOF may be also impacted by barcode quality and environmental conditions. ) |
||||
|
˙ |
4 mil Code 39 |
|
40 ~ 120 mm |
|
|
˙ |
5 mil Code 39 |
|
45 ~ 155 mm |
|
|
˙ |
13 mil UPCA |
|
40 ~ 340 mm |
|
|
˙ |
10 mil DataMatrix |
|
40 ~ 160 mm |
|
|
˙ |
20 mil QR code |
|
25 ~ 260 mm |
|
|
˙ |
6.67 mil PDF417 |
|
50 ~ 150 mm |
|
