Omni Directional Barcode Scanner - 2D OM7520M
* Easy installation: Plug & Play
* CMOS Sensor: 1280 x 1024 pixels
* Motion Tolerance: 3.0 m/sec
* Can read 1D/2D barcodes on paper label as well on display
* Hand-free model: keep lines moving
* can be applied in Supermarket, Convenient Store

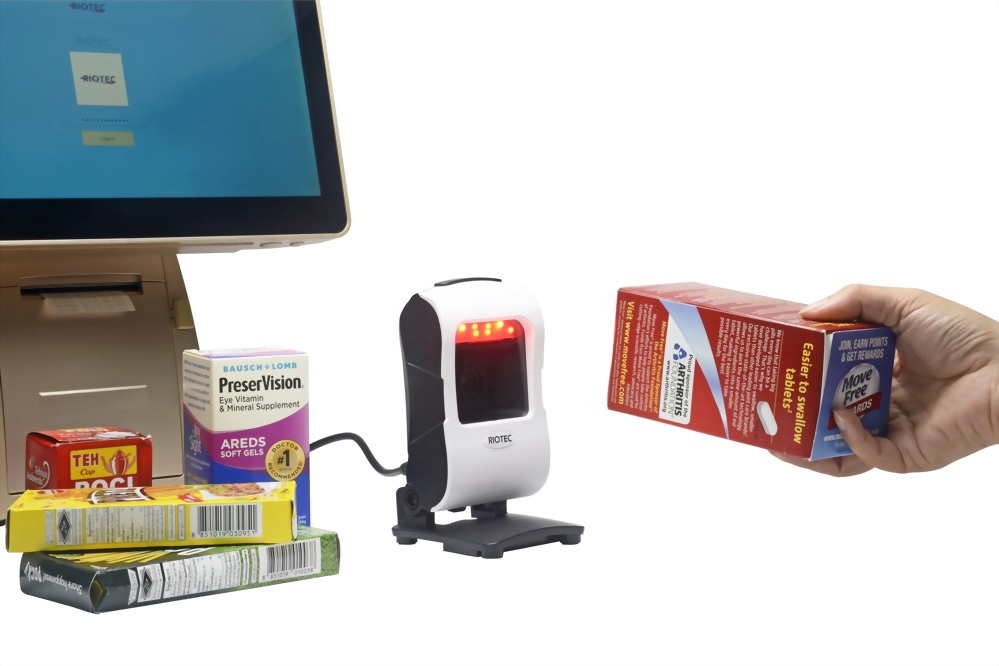

The OM7520M Omni-Directional Barcode Scanner is a high performance
scanner ideal for retail Point-of-Sale (POS) and warehouse applications.
Utilizing a digital imaging scan engine, the OM7520M is capable of reading both
1D and 2D barcodes on paper label as well as on mobile phones, tablets and
computer display.
(click the above picture to see 360-degree product photo)
OM7520M Features:
* Adopt RIOTC OME750M 2D scan module
* Easy installation: Plug & Play
* CMOS Sensor: 1280 x 1024 pixels, can read tiny code (Code 39, 3 mil)
* Motion Tolerance: 3.0 m/sec, can read moving barcodes quickly
* Can read 1D/2D barcodes on paper label as well on display
* Hand-free model: keep lines moving and minimize the waiting time
* can be applied in Supermarket, Convenient Store
* Interface: USB HID, USB-Serial, RS232

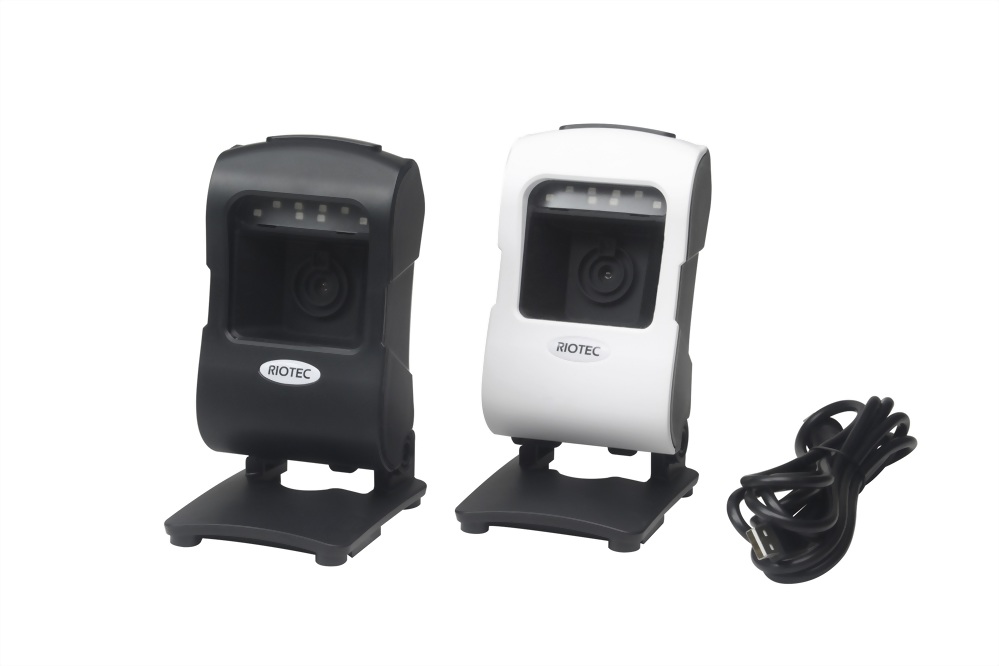

* Front case: Black or White
In addition, OM7520M can be applied in Access Control Field. Just reverse the direction of stand, then, fix OM7520M on the wall. Omni-directional barcode scanner can read the ID code on card easily.
|
|
Scanners Specifications： |
|
|
|
Model Name |
OM7520M
|
|
|
Description |
Omni-Directional 2D Imager barcode scanner
|
|
|
Engine |
2D engine
|
|
|
Scan Mode
|
Automatic
|
|
|
Performance Characteristics | |
|
˙ |
Motion Tolerance |
3.0m/sec |
|
˙ |
Scan speed
|
60 frame /sec
|
| ˙ |
Light source |
620nm Red LED
|
|
˙ |
Depth of field |
13mil EAN13: 260mm |
|
˙ |
Sensor
|
CMOS (1280×1024 pixels)
|
|
˙ |
Best resolution |
1D (3mil)：Code 39 |
|
˙ |
Reading angle |
Tilt: 360° / Pitch ±60° / Skew ±70°
|
|
˙ |
Print contrast |
≥ 20%
|
|
˙ |
Indicators |
LED & Beeper
|
|
˙ |
Symbologies
|
1D: EAN-8, EAN-13, ISSN, ISBN, UPC-A, UPC-E,
Code 11, Code 32, Code 39,Code 93, Code 128, Codabar, industrial 2 of 5, Interleaved 2 of 5, Matrix 2 of 5, GS1-128 ,GS1 Databar, GS1 DataBar Limited, GS1 DataBar Expanded 2D: PDF417, Micro PDF417, QR Code, Micro QR Code, Data Matrix, Aztec |
|
˙ |
Interface |
USB HID, USB Serial (by request), RS232 (by request) |
|
|
Electrical Characteristics |
|
|
˙ |
Input voltage |
5 V/DC ± 5%
|
|
˙ |
Current - operating |
300 mA
|
|
|
Physical Characteristics |
|
|
˙ |
Dimension (L x W x H) |
88 x 82 x 156 mm
|
|
˙ |
Weight |
246 g± 5g
|
|
|
Environment |
|
|
˙
|
Temperature-operation
|
0°C to 50°C
|
|
˙ |
Temperature-storage |
-10°C to 60°C
|
|
˙ |
Humidity |
5% to 95% relative humidity, non-condensing
|
|
˙ |
Ambient Light |
0-70000Lux |
|
|
Decode Zone (DOF is measured at the office under 600 lux and by Standard barcode. There are +/- 10 mm Torrence. DOF may be also impacted by barcode quality and environmental conditions. ) |
|
|
˙ |
4 mil Code 39 |
10mm - 120mm
|
|
˙ |
5 mil Code 39 |
10mm - 140mm
|
|
˙ |
13 mil UPC-A |
10mm - 260mm
|
|
˙ |
6.67 mil PDF417 |
10mm - 140mm
|
|
˙ |
10 mil DataMatrix |
10mm - 130mm
|
|
˙
|
20 mil QR Code
|
10mm - 230mm
|
